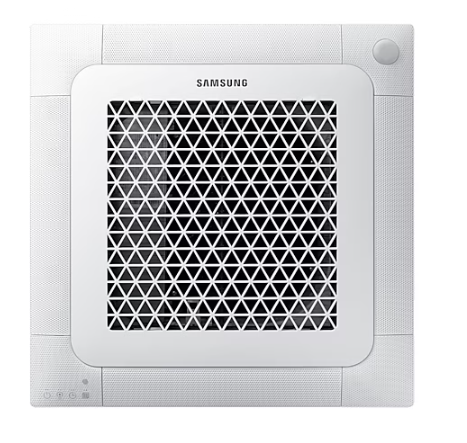

Samsung AM9000 Wind-free™ 4Way Cassette (600x600)
SKU
AM036NNNDEH/EU
Out of stock
Samsung AM9000 Wind-free™ 4Way Cassette (600x600). WindFree™. Energy Saving. Big Blade. (AM036NNNDEH/EU)
.
Categories: Default Category, Electronics, Lifestyle, AC, Samsung
Specifications
-
Cooling [Btu/h]12,300 Btu/h
-
Cooling [kW]3.6 kW
Specifications Detail
Features
- Type4 WAY CASSETTE S (600x600)
Model Name
- Indoor UnitAM036NNNDEH/EU
Power Supply (Indoor Unit) [Φ, #, V, Hz]
- 1,2,220-240,50
System
- ModeHP/HR
Capacity
- Cooling [kW]3.6 kW
- Cooling [Btu/h]12,300 Btu/h
- Heating [kW]4.0 kW
- Heating [Btu/h]13,600 Btu/h
Power Input
- Cooling [kW]0.020 kW
- Heating [kW]0.020 kW
Current Input
- Cooling0.19 A
- Heating0.19 A
Fan
- TypeTurbo Fan
- Motor (Output) [W]65 x 1 W
- Air Flow Rate(High/Mid/Low)[L/S]175/150/125
- Air Flow Rate (High / Mid / Low) [m3/h]630/540/450 ㎥/h
Piping Connections
- Liquid Pipe (Φ, mm)6.35 mm
- Liquid Pipe (Φ, inch)1/4"
- Gas Pipe (Φ, mm)12.70 mm
- Gas Pipe (Φ, inch)1/2"
- Drain Pipe (Φ,mm)VP25 (OD 32,ID 25)
Refrigerant
- TypeR410A(Contains fluorinated greenhouse gas, GWP=2,088)
- Control MethodEEV INCLUDED
Sound
- Sound Power Level51.0 dBA
- Sound Pressure (High / Mid / Low) [dB(A)]34/30/26 dBA
External Dimension (Indoor Unit)
- Panel Net Weight (kg)12.0 kg
- Shipping Weight (kg)14.0 kg
- Net Dimensions (WxHxD) (mm)575 x 250 x 575 mm
- Shipping Dimensions (WxHxD) (mm)623 x 298 x 653 mm
Panel
- Model NamePC4SUFMAN
- Panel Net Weight (kg)2.7 kg
- Shipping Weight (kg)3.9 kg
- Net Dimensions (WxHxD) (mm)620 x 57 x 620 mm
- Shipping Dimensions (WxHxD) (mm)670 x 120 x 655 mm
Field Wiring
- Power Source Wire1.5 ~ 2.5
- Transmission Cable0.75 ~ 1.50
