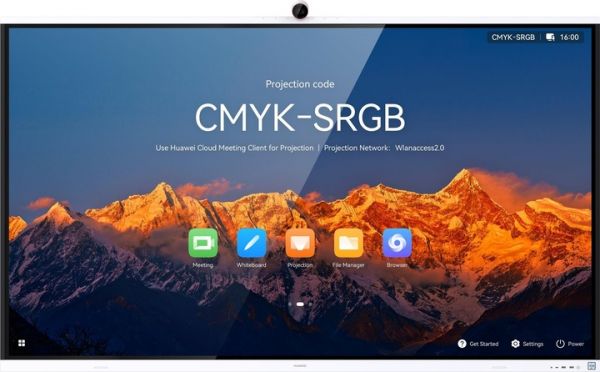

HUAWEI IdeaHub S2, IHS2-86SA,Intelligent Collaboration Device 86-inch infrared screen, Jade white, overseas
SKU
IDEAHUB S2 86inch
In stock
HUAWEI IdeaHub S2, IHS2-86SA,Intelligent Collaboration Device 86-inch infrared screen, Jade white, overseas
.
Categories: Default Category, Huawei power Products
Product Specifications
Product Name - HUAWEI IdeaHub S2
Product model - 86": IHS2-86SA
Product dimensions (H x W x D) - 86": 1212.0 mm x 1953.0 mm x 91.8 mm
Net weight - 86": 62.0 kg
Gross weight (including the package) - 86": 73.5 kg
The dimensions and weight may vary with configuration, manufacturing process, and measurement method. The product height includes the camera (55 mm).
Component
Device - 1
Stylus pens - 2
Cable - Power cable x 1
Wall-mounted bracket - Optional (65", 75", and 86")
Rolling stand - Optional (65", 75", and 86")
IdeaShare Key - Optional (Type-A port)
OPS - Optional
Screen
Resolution - 4K (3840 x 2160 pixels)
Backlight type - D-LED
Screen Lamination - Zero-gap bonding
Writing
Latency - 16 ms
Touch sensing distance - ≤ 1.5 mm
Intelligent writing recognition - Supports recognition of Chinese, English, and 11 types of graphics
Camera
Resolution - 4K
Sharpness - 1800 lines
Lens cap for privacy protection - √
Horizontal FoV - 80°
TV distortion - ＜2%
Speaker
Frequency domain - 100 Hz to 20 kHz
Number of speaker units - 4
Total power - 40 W
Microphone
Sound pickup angle - 180°
Sound pickup distance - 12 m
Frequency domain - 80 Hz to 20 kHz
Optimized sound pickup - Sound location, echo cancellation, and automatic gain control
Meeting
Native meeting apps - Huawei Cloud Meeting and WeLink
Dual streams (audio/video + data sharing) - 1080p30fps+1080p30fps/4K8fps
BYOM - √
AI Function
Auto-Framing - √
Intelligent tracking - √
Acoustic baffle - √
DNN-based dereverberation - √
System
RAM - 8 GB
Flash - 64 GB
OS - HarmonyOS, Windows (OPS required)
Security - Embedded encryption chip that supports H.235, STARTTLS, TLS, SRTP encryption, Chinese cryptographic algorithms, secure boot, and TEE
Language - Simplified Chinese, English, French, Japanese, Arabic, Spanish, Russian, Portuguese, and Italian
Wireless connection
Wi-Fi module - Wi-Fi 6
Wi-Fi frequency - 2.4 GHz + 5 GHz
NFC - √
Port
Video input - HDMI cable x 1
Video output - HDMI cable x 1
Audio input - 3.5 mm (line-in) x 1
HD-AI x 1 - Audio output
3.5 mm (line-out) x 1 - Other ports
USB Type-A 3.0 x 3 - USB Type-C x 1
RJ45 (10/100/1000 Mbit/s LAN) x 1
Product Name - HUAWEI IdeaHub S2
Product model - 86": IHS2-86SA
Product dimensions (H x W x D) - 86": 1212.0 mm x 1953.0 mm x 91.8 mm
Net weight - 86": 62.0 kg
Gross weight (including the package) - 86": 73.5 kg
The dimensions and weight may vary with configuration, manufacturing process, and measurement method. The product height includes the camera (55 mm).
Component
Device - 1
Stylus pens - 2
Cable - Power cable x 1
Wall-mounted bracket - Optional (65", 75", and 86")
Rolling stand - Optional (65", 75", and 86")
IdeaShare Key - Optional (Type-A port)
OPS - Optional
Screen
Resolution - 4K (3840 x 2160 pixels)
Backlight type - D-LED
Screen Lamination - Zero-gap bonding
Writing
Latency - 16 ms
Touch sensing distance - ≤ 1.5 mm
Intelligent writing recognition - Supports recognition of Chinese, English, and 11 types of graphics
Camera
Resolution - 4K
Sharpness - 1800 lines
Lens cap for privacy protection - √
Horizontal FoV - 80°
TV distortion - ＜2%
Speaker
Frequency domain - 100 Hz to 20 kHz
Number of speaker units - 4
Total power - 40 W
Microphone
Sound pickup angle - 180°
Sound pickup distance - 12 m
Frequency domain - 80 Hz to 20 kHz
Optimized sound pickup - Sound location, echo cancellation, and automatic gain control
Meeting
Native meeting apps - Huawei Cloud Meeting and WeLink
Dual streams (audio/video + data sharing) - 1080p30fps+1080p30fps/4K8fps
BYOM - √
AI Function
Auto-Framing - √
Intelligent tracking - √
Acoustic baffle - √
DNN-based dereverberation - √
System
RAM - 8 GB
Flash - 64 GB
OS - HarmonyOS, Windows (OPS required)
Security - Embedded encryption chip that supports H.235, STARTTLS, TLS, SRTP encryption, Chinese cryptographic algorithms, secure boot, and TEE
Language - Simplified Chinese, English, French, Japanese, Arabic, Spanish, Russian, Portuguese, and Italian
Wireless connection
Wi-Fi module - Wi-Fi 6
Wi-Fi frequency - 2.4 GHz + 5 GHz
NFC - √
Port
Video input - HDMI cable x 1
Video output - HDMI cable x 1
Audio input - 3.5 mm (line-in) x 1
HD-AI x 1 - Audio output
3.5 mm (line-out) x 1 - Other ports
USB Type-A 3.0 x 3 - USB Type-C x 1
RJ45 (10/100/1000 Mbit/s LAN) x 1
