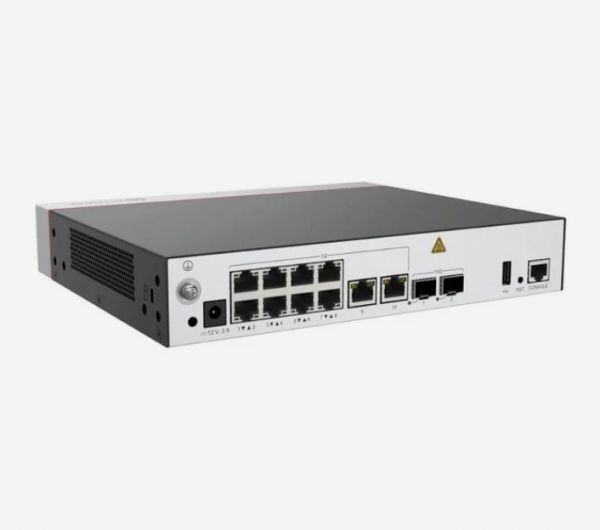

Huawei AC650-256AP mainframe (10*GE ports, 2*10GE SFP+ ports, with the AC/DC adapter) Access Controller 02355NCH
SKU
02355NCH
In stock
Huawei AC650-256AP mainframe (10*GE ports, 2*10GE SFP+ ports, with the AC/DC adapter) Access Controller 02355NCH
.
Categories: Default Category, Networking, Huawei, Data Center & Cloud Services
Specification
|
Item
|
Specification
|
|
Installation Type
|
Rack
|
|
Desk
|
|
|
Wall
|
|
|
Dimensions without packaging (H x W x D) [mm(in.)]
|
Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.)
|
|
Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.)
|
|
|
Weight without packaging [kg(lb)]
|
1.9kg
|
|
Storage
|
Nand FLASH 1GB
|
|
Console port
|
RJ45
|
|
Maximum power consumption [W]
|
23.58 W
|
|
Maximum heat dissipation [BTU/hour]
|
80.45 BTU/hour
|
|
Power supply mode
|
DC adapter
|
|
Service port surge protection
|
6 kV in common mode
|
|
Types of fans
|
None
|
|
Maximum number of physical ports on the entire device
|
2 x 10GE (SFP+) + 10 x GE (RJ45)
|
|
Long-term operating temperature [°C(°F)]
|
0°C to 45°C (32°F to 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every
time the altitude increases by 300 m.) |
|
Storage temperature [°C(°F)]
|
–40°C to +70°C (–40°F to +158°F)
|
|
Long-term operating relative humidity [RH]
|
5% RH to 95% RH, non-condensing
|
|
Long-term operating altitude [m(ft.)]
|
–60 m to +5000 m (–196.85 ft to +16404.20 ft)
|
|
Atmospheric pressure [kPa]
|
53kPa - 106kPa ETSI 300 019-2-3
|
|
Ground
|
Ground
|
|
USB
|
1 x USB 2.0 (host type A) port
|
|
MTBF [year]
|
50 year
|
|
MTTR [hour]
|
2 hour
|
