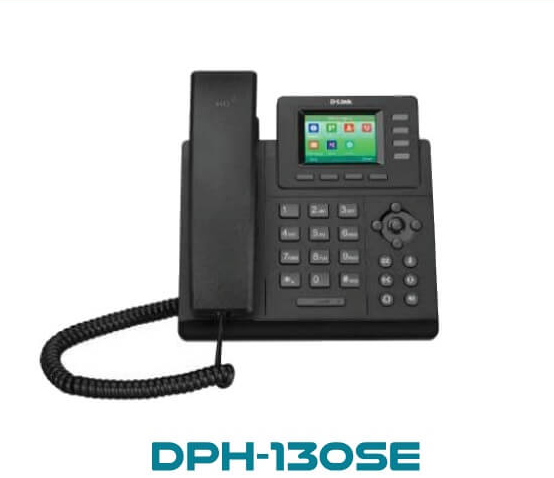

D-LINK DPH-130SE Business IP Phone – High-Performance VoIP Phone with HD Audio, 2 SIP Accounts, and Intuitive Interface
SKU
DPH-130SE/F1
In stock
SIP IP Phone with 1 x 10/100Mbps PoE support, 1 x 10/100Mbps LAN port, VLAN support, 4 SIP Lines, 2.4” 320*240 color LCD
.
Categories: Default Category, Data Center & Cloud Services, DLINK
The D-Link DPH-130SE features a 2.4” 320*240-pixel color LCD display, providing a clear visual experience for users. It supports up to 4 SIP accounts and includes local 5-way conferencing. With its adjustable multi-angle stand, the phone ensures flexibility in various working situations. Moreover, its easy to-use interface, powerful features, and reasonable pricing deliver an excellent voice communication solutions.
Display & Indicator
• 2.4” 320*240 –pixel color graphical LCD display
• LED for call and message waiting indication
• illuminated LED for line status information
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name and number
Function Keys
• 4 line keys， 5 navigation keys
• 6 features keys: message, headset, redial, mute,
hands-free speakerphone
• Volume control keys
Audio Features
• Voice: handset, speaker, headset
• Smart Noise Filtering
• Wideband codec: Opus, G.722
• Narrowband codec: G.711(A/µ), G.729, G.729A,
iLBC
• DTMF: RFC 2833,SIP INFO, Inband
• Full-duplex hands-free speakerphone with
AEC
• VAD, CNG, AEC, PLC, AJB, AGC
Phone Feature
• 4 SIP accounts
• Call hold, DND, Speed dial
• Call forward, call waiting, call transfer
• Redial, call return, auto answer
• Local 5-way conferencing
• Direct IP call, Time/Date Management
Other Physical Features
• 2 * RJ-45 10/100Mbps
• 1 * RJ9 (4P4C) Handset
• 1 * RJ9 (4P4C) Headset
• Wall Mountable
• Power Adapter(Optional)
• 100-240VAC Input, DC 5V/1A Output
• Power Consumption:2~3W
• Dimension(W*D*H*T):
• 190mm*153mm*162mm*42mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C
(+14~122°F)
Management
• Configure via browser/phone/autoprovision
• Auto provision via FTP/TFTP/HTTP/HTTPS
• TR-069, System log
• Reset to factory, reboot
Directory
• Local phonebook up to 1000
entries
• Blacklist
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/
missed
IP-PBX Features
• BLF, Anonymous call
• Anonymous call rejection
• Call park, call pickup
Network Security
• SIP v1(RF2543), v2(RFC3261)
• NAT traversal: STUN
• Proxy and peer-to-peer SIP
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• SRTP/ SIP TLS
• HTTPS certificate manager
• IPv6
• DHCP VLAN/LLDP
Display & Indicator
• 2.4” 320*240 –pixel color graphical LCD display
• LED for call and message waiting indication
• illuminated LED for line status information
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name and number
Function Keys
• 4 line keys， 5 navigation keys
• 6 features keys: message, headset, redial, mute,
hands-free speakerphone
• Volume control keys
Audio Features
• Voice: handset, speaker, headset
• Smart Noise Filtering
• Wideband codec: Opus, G.722
• Narrowband codec: G.711(A/µ), G.729, G.729A,
iLBC
• DTMF: RFC 2833,SIP INFO, Inband
• Full-duplex hands-free speakerphone with
AEC
• VAD, CNG, AEC, PLC, AJB, AGC
Phone Feature
• 4 SIP accounts
• Call hold, DND, Speed dial
• Call forward, call waiting, call transfer
• Redial, call return, auto answer
• Local 5-way conferencing
• Direct IP call, Time/Date Management
Other Physical Features
• 2 * RJ-45 10/100Mbps
• 1 * RJ9 (4P4C) Handset
• 1 * RJ9 (4P4C) Headset
• Wall Mountable
• Power Adapter(Optional)
• 100-240VAC Input, DC 5V/1A Output
• Power Consumption:2~3W
• Dimension(W*D*H*T):
• 190mm*153mm*162mm*42mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C
(+14~122°F)
Management
• Configure via browser/phone/autoprovision
• Auto provision via FTP/TFTP/HTTP/HTTPS
• TR-069, System log
• Reset to factory, reboot
Directory
• Local phonebook up to 1000
entries
• Blacklist
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/
missed
IP-PBX Features
• BLF, Anonymous call
• Anonymous call rejection
• Call park, call pickup
Network Security
• SIP v1(RF2543), v2(RFC3261)
• NAT traversal: STUN
• Proxy and peer-to-peer SIP
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• SRTP/ SIP TLS
• HTTPS certificate manager
• IPv6
• DHCP VLAN/LLDP
