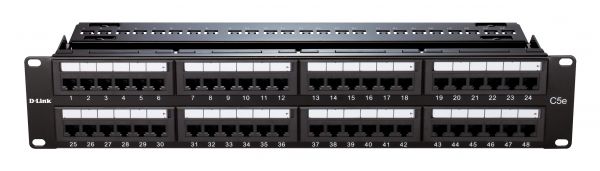

D-Link Cable NPP-5E1BLK481 Patch Panel Cat 5e UTP Keystone Type- 48 Port-Fully Loaded

Panel: SECC, 1.2mm thickness with Black (RAL 9005) color painted RJ45 Jack Housing: PBT+15%GF, UL 94V-0 RJ45 Jack shield: Bronze with Nickel plated RJ45 Jack Contact Material & Finished: Material: Phosphor Bronze Finish: min 3 mm 50 micro-inches Gold plated over Nickel plated IDC Housing: PC+ 5% Glass Fiber, UL 94V-2 IDC Terminal material & Finished: Phosphor Bronze with min 50 micro-inch Tin plated Krone tool only Suitable for 22-26 AWG solid and stranded wire Jack Bracket Set: ABS+ PC, UL 94V-0, Black (RAL 9005) color Dust Cover: PC, UL 94V-0, Transparent Black (RAL 9004) color Name Plate: PVC, transparent color Ground wire: 18 AWG wire, with Green/Yellow striped color, length 40 cm Performance T568A & T568B wiring scheme Insertion force: 90 gm for 8 contacts Retention strength: 7.7 kg between jack and plug Operating temperature: -10›C to 60›C ( ISO/IEC 11801, ANSI/TIA/EIA 568B.2) Durability: Jack: 750 cycle’s plug-jack mating and unmating test, insertion cycles at 20 cycles / minute max. contact resistance test per 100 cycles The Cat5E transmission performance is in compliance with the ANSI/TIA/EIA 568B.2 standard
