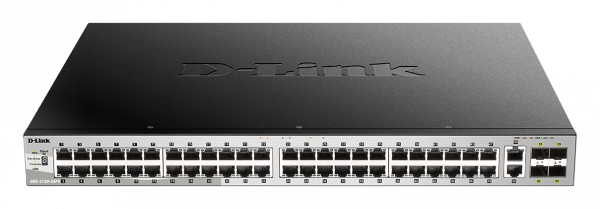

54-Port Lite Layer 3 Stackable Managed Gigabit PoE Switch DGS-3130-54PS
SKU
DGS-3130-54PS
In stock
48 10/100/1000BASE-T PoE ports + 2 10G BASE-T + 4 10G SFP+ ports, Lite L3 Stackable Managed Switch (stacking cable not included),(PoE Power Budget: 370W, 740W with external RPS DPS-700) (802.3af/802.3at support)
.
Categories: Default Category, Data Center & Cloud Services, DLINK
Specification
|
Type
|
Managed |
|---|---|
|
Layer
|
Layer 2+ Layer 3 |
|
Main type of ports
|
1000BASE-T Gigabit Ethernet SFP |
|
Type of uplink ports
|
10GbE SFP+ 10GBASE-T |
|
Number of ports
|
16 to 30 ports 48 to 54 ports |
|
Switching capacity
|
168 Gbps 216 Gbps |
|
PoE options
|
802.3af 802.3at |
|
Number of PoE ports
|
24 48 |
|
PoE power budget
|
See datasheet See datasheet |
|
802.3az Energy-Efficient Ethernet support
|
YES |
|
Form factor
|
Rackmountable |
|
Physical stacking
|
Up to 20 Gbps bidirectional bandwidth Up to 9 devices |
|
Virtual stacking (up to 32 devices)
|
YES |
|
Jumbo frame
|
YES |
|
Cable diagnostics
|
YES |
|
MAC address
|
16K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Ethernet ring protection switching (ERPS)
|
YES |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
|
Advanced VLAN
|
Asymmetric VLAN ISM VLAN Super VLAN Voice VLAN |
|
IP interfaces
|
16 |
|
Static route for IPv4/IPv6
|
IPv4 - 1K IPv6 - 512 |
|
RIP v1/v2
|
YES |
|
RIPng
|
YES |
|
Number of QoS queues per port
|
8 |
|
CoS based on contents
|
YES |
|
Bandwidth control
|
8 Kbps minimum granularity |
|
Three colour marker
|
8 Kbps minimum granularity |
|
ACL type
|
Egress Ingress VLAN-based |
|
ACL based on packet contents
|
YES |
|
Time-based ACL
|
YES |
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
YES |
|
ARP spoofing
|
YES |
|
BPDU attack protection
|
YES |
|
802.1X access control
|
YES |
|
Microsoft NAP support
|
YES |
|
RADIUS/TACACS+ authentication
|
YES |
|
SNMP (v1/v2c/v3)
|
YES |
|
RMON v1/v2
|
YES |
|
sFlow
|
YES |
|
LLDP
|
YES |
|
ICMPv6
|
YES |
|
802.3ah
|
YES |
|
Stacking
|
Physical Virtual |
