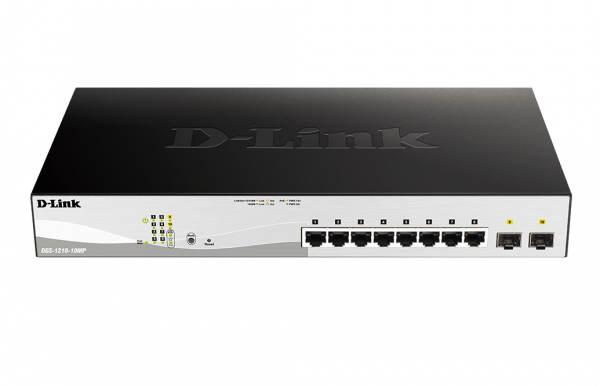

10-Port Gigabit Smart Managed PoE Switch (DGS-1210-10MP)
SKU
DGS-1210-10MP
In stock
8-ports 10/100/1000Base-T PoE + 2 SFP ports Smart Switch, 130W PoE Power budget. (802.3af/802.3at support)
.
Categories: Default Category, Data Center & Cloud Services, DLINK
Specification
|
Interfaces
|
8 x 10/100/1000BASE-T PoE ports 2 x SFP ports |
|---|---|
|
Switch Capacity
|
20 Gbps |
|
Max. Packet Forwarding Rate
|
14.88 Mpps |
|
Dimensions
|
330 x 180 x 44 mm |
|
Weight
|
1.77 kg |
|
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage -20 - 70°C |
|
Standby Power Consumption
|
4.3 W/100V 5.2 W/240V |
|
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
|
Maximum Heat Dissipation
|
519.51 BTU/hr (100 V) 507.23 BTU/hr (240 V) |
|
MTBF
|
1,274,005 hours |
|
Power Input
|
100 to 240 V AC |
|
CPU Speed
|
500MHz |
|
DRAM Size
|
DDR3 128MB |
|
Flash Memory Size
|
32 MB |
|
Packet Buffer Size
|
4.1Mbits |
|
FAN
|
Fanless |
|
PoE Budget
|
130 W |
|
Operating Altitude
|
1500 m |
|
Max Power Consumption
|
152.3 W/100 V, 148.7 W/240 V (PoE on) 8.5 W/100 V, 9.4 W/240 V (PoE off) |
|
Acoustic
|
0 dB |
